Custom Automated Assembly Equipment for Fluid Routing
From connector insertion machines to complete assembly cells — every system engineered specifically for nylon tubing, thermoplastic hose, and fluid routing components.

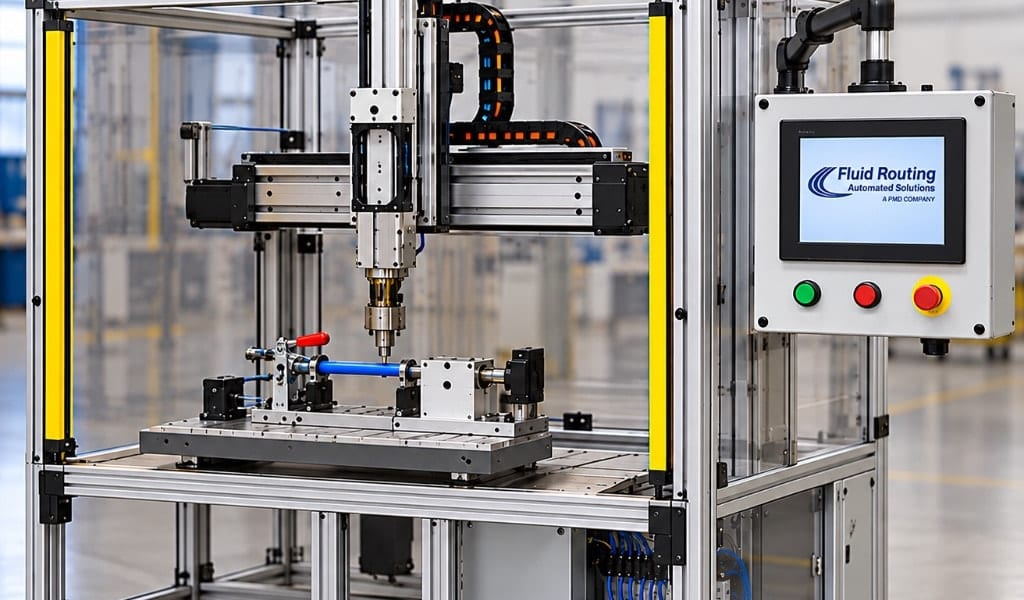

Connector Insertion Machines
Automated systems for precise, repeatable connector insertion into nylon tubing and thermoplastic hose assemblies. Designed for high-volume automotive production with integrated process verification.
- Servo-controlled insertion force and position
- Integrated pull-force verification
- Multiple connector configurations on a single platform
- Poka-yoke tooling and part presence detection
- Data logging for traceability and SPC
01
Connector Insertion Machines
Custom Engineered
Purpose-built for fluid routing assembly
Servo-Controlled Assembly Systems
Programmable servo motion systems for precision assembly operations requiring controlled force, position, and speed profiles. Flexible enough to handle product families with fast changeover.
- Multi-axis servo motion control
- Programmable force and position profiles
- Recipe-based product changeover
- Real-time process monitoring
- Integration with plant MES/SCADA systems
02
Servo-Controlled Assembly Systems
Custom Engineered
Purpose-built for fluid routing assembly
Custom Tooling & Fixtures
Application-specific tooling and production fixtures designed for your exact connector and tubing geometry. Engineered for durability, repeatability, and fast changeover.
- Connector-specific insertion tooling
- Tubing retention and alignment fixtures
- Quick-change tooling systems
- Hardened tool steel construction
- Designed for PPAP validation
03
Custom Tooling & Fixtures
Custom Engineered
Purpose-built for fluid routing assembly
Automated Testing Equipment
In-line and end-of-line testing systems for leak detection, pull-force validation, and assembly verification. Ensure every assembly meets specification before it leaves the line.
- Pneumatic leak testing
- Connector pull-force validation
- Assembly presence and orientation verification
- Barcode/2D code scanning and traceability
- Reject handling and quarantine
04
Automated Testing Equipment
Custom Engineered
Purpose-built for fluid routing assembly
Production Fixtures
Ergonomic and precise production fixtures for manual and semi-automated assembly operations. Designed to reduce operator error and improve throughput.
- Ergonomic operator interface design
- Part presence and orientation detection
- Torque and force monitoring
- Integrated error-proofing
- Durable for high-cycle production environments
05
Production Fixtures
Custom Engineered
Purpose-built for fluid routing assembly
Don't see exactly what you need?
Every machine we build is custom. Tell us about your application and we'll engineer the solution.
